Kumsoo Connecting Co., Ltd.

Advantages

• High quality metal weld.
• Capability to produce pipe having very close diameter thickness ratio.
• Capability to manufacture pipe as per API 5L Grade X-80 or Equivalent.
• Capability to manufacture Alloy Steel Pipes.
• Supply the items in a large variety of steel grades, specifications and dimensions.

Features

• High toughness, good uniformity and compactness.
• Welded internally and externally.
• It is more cost effective than their seamless equivalents.
• It is usually more readily available than seamless.
• Thanks to extremely high speed and deposition rate, the shorter lead time is required than seamless.
• The wall thickness of welded pipes is generally more consistent than that of seamless pipes.
• It allows more time for the price of the materials to fluctuate.

Application Industry

• Oil and Gas Pipeline
• Power Plant
• Water & Sewerage
• Structure
• Other Industries

Production Scope

• O.D : 355.6 mm (14") to 1,524 mm (60")
• Thickness : 12.7 T to 80T
• Length : Max. 12,500 mm
• Capacity : 24,000 Ton / Year

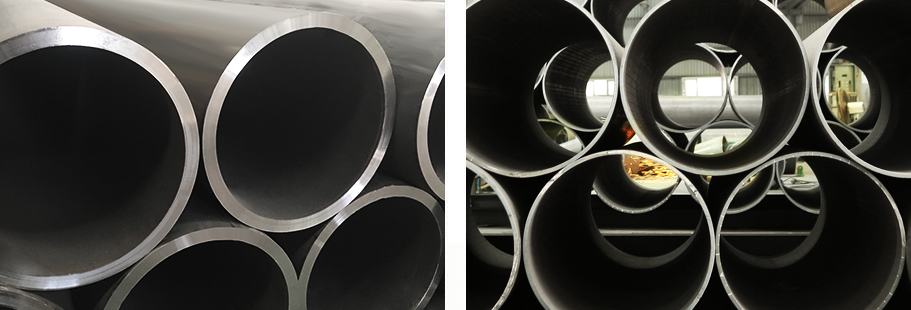

• Structure Pipe

  Carbon Steel Pipe For Structure

  • Use : Steel pipe for regular structures including engineering works, buildings, steel towers, piles, rails, fences and pillars.
              Structures in the ocean including drilling facilities and quay facilities.
  • Plate Specification : API2W GR42, 50, 60 / API 2H GR42, 50 /A572 GR50
    EN10025/10225/10113/10219 JIS G 3444 STK 400, 490 etc.
  • Main Specification : API 2B, JIS G 3444
  • Application : Steel for resource recovery facilities in or above the sea.
  • Purpose
    • Leg Cans, Bracings
    • Jacket, Piles, Caissons
    • Conductor Pipes
    • Construction Pipes

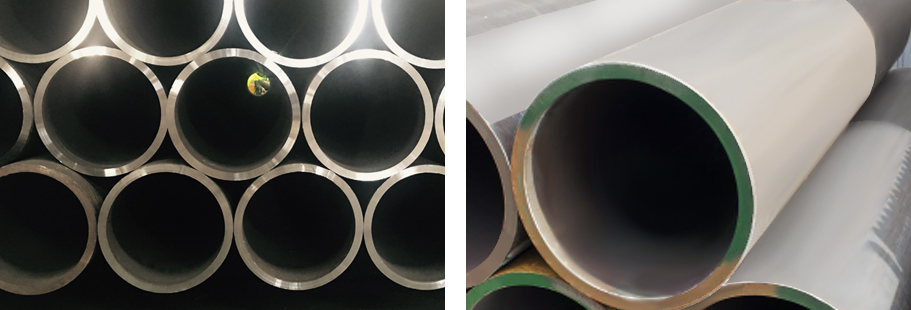

• Pressure Pipe

  Carbon Steel And Alloy Steel Pipe For Piping

  • Use : Used for piping for conveying Steam, Air, Water, Oil and Gas in comparatively low pressure.
  • Plate Specification : ASTM/ASME A515 (A516) GR.60, 65, 70
    ASTM / ASME A387 GR2, 11,12, 22, 5, 9, 91 etc.
  • Main Specification : ASTM A671, A672, A691 etc./ JIS G 3457
  • Application : Processing Pipe ASTM
  • Purpose : Petrochemical Industry, Power Plant

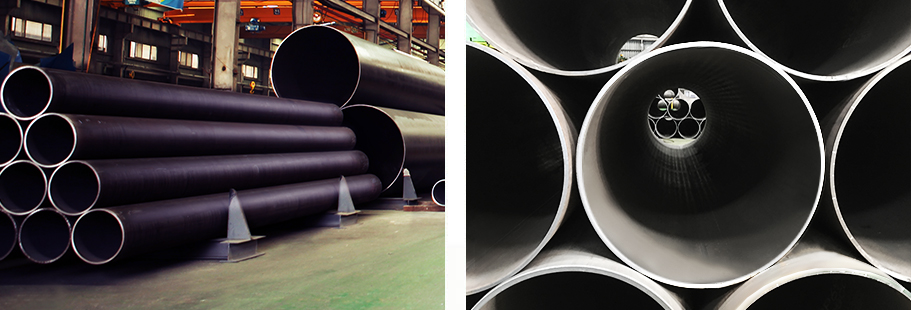

• Line Pipe

  Line Pipe

  • Use : Used for transferring Oil and Natural gas
  • Plate Specification : API 5L GR. A, B, x42~x80
  • Main Specification : B, x42, x46, x52, x56, x60, x65, x70, x80
  • Application : Line Pipes API 5L
  • Purpose : Transport of Crude Oil and Natural gas from Oil field to Refinery.



• CLASSIFICATION

  CLASSIFICATION

  SPECIFICATION	GRADE	PRODUCT
  API 2B	API 2W, 2H	Fabrication of Structure Steel Pipe
  API 5L	GR. A~X70	Line Pipe
  ASTM A671	All	EFW (Electric Fusion Welded) Steel Pipe for Atmospheric & Low Temperature
  ASTM A672	All	EFW(Electric Fusion Welded) Steel Pipe for High Pressure Service at Moderate Temperature
  ASTM A691	All	Carbon and Alloy Steel Pipe, Electric Fusion Welded for High Pressure Service at High Temperature
  ASTM A53	All	Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless
  ASTM A134	All	Pipe, Steel, Electric-Fusion(Arc) Welded(Size NPS 16 and over)
  ASTM A135	All	Carbon Steel Piping
  ASTM A139	All	Electric-Fusion(Arc) Welded(Size NPS 4 and over)
  ASTM A178	All	Boiler and Superheater Tubes
  ASTM A252	All	Welded and Seamless Steel Pipe Piles
  ASTM A333/A334	All	Steel Pipe for Low-Temperature Service
  ASTM A356	All	Steel Castings, Carbon, Low Alloy, and Stainless Steel, Heavy-Walled for Steam Turbines
  ASTM A500	All	Cold-Formed Welded Carbon Steel Structural Tubing
  ASTM A501	All	Hot-Formed Welded Carbon Structural Tubing
  ASTM A513	All	Carbon and Alloy Steel Mechanical Tubing
  ASTM A589	All	Carbon Steel Water-Well Pipe
  ASTM A369	All	Steel Castings, Carbon, Low Alloy, and Stainless Steel, Heavy-Walled for Steam Turbines
  ASTM A860	All	High-Strength Ferritic Steel Butt-Welding Fittings
  ASTM A249	All	Boiler, Superheater, Heat Exchanger & Condenser Tubes
  ASTM A269	All	Austenitic Stainless Steel Tubing
  ASTM A270	All	Austenitic and Ferritic/Austenitic Stainless Steel Sanitary Tubing
  EN 10025	All	European Structural Steel
  EN 10225	All	Weldable Structural Steel for Fixed Offshore Structures
  JIS G3457	All	Arc Welded Carbon Steel Pipe
  JIS G3454	All	Carbon Steel Pipes for Pressure Services
  JIS G3444	All	Carbon Steel Tubes for General Structural Purposes
  JIS A5525	All	Steel pipe piles
